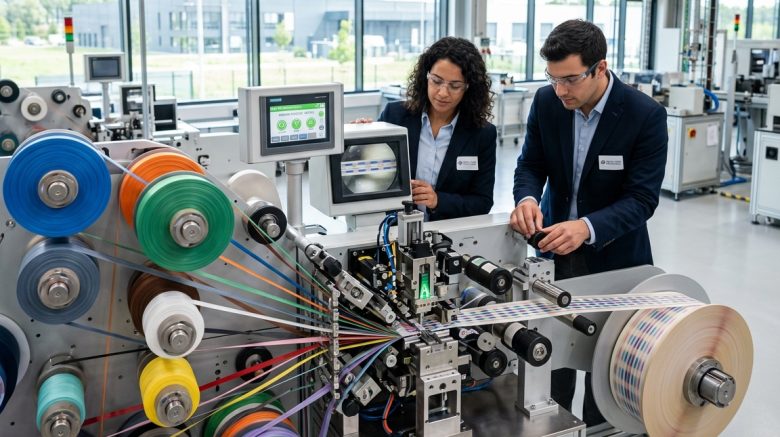

Intermittent Bonded Ribbon Production Line Guide
An intermittent bonded ribbon production line connects fiber subunits at set intervals. This maintains fibers in an organized arrangement for mass-fusion splicing while letting the ribbon roll or fold into a compact cable shape. Flexible ribbon cable production is supported by this design while preserving efficient fiber handling.
Some processes apply bonding material before the subunit coating cures. The materials can diffuse across their interface and cure together. One commercial example is Prysmian’s FlexRibbon technology, whose original design the company says dates to 2018. These methods illustrate how optical fiber ribbon manufacturing and fiber optic bonding operate together.
Intermittent Bonded Ribbon Production Line SZ Stranding Line Fiber Draw Tower
Understanding What An Intermittent Bonded Fiber Ribbon Is
Optical fibers are grouped into small subunits in an intermittent bonded fiber ribbon. Although they remain organized for splicing, the subunits can change their shape to fit within a cable.
The Arrangement Of Fiber Subunits And Intermittent Bonds
Each neighboring pair or group of fibers is held together by a coating. These optical fiber subunits connect to neighboring subunits at separated bond points rather than along their full length. A 12-fiber design may use six two-fiber subunits. Configurations can contain 4 to 36 fibers, with bonds spaced from 10 to 1,000 millimeters apart.

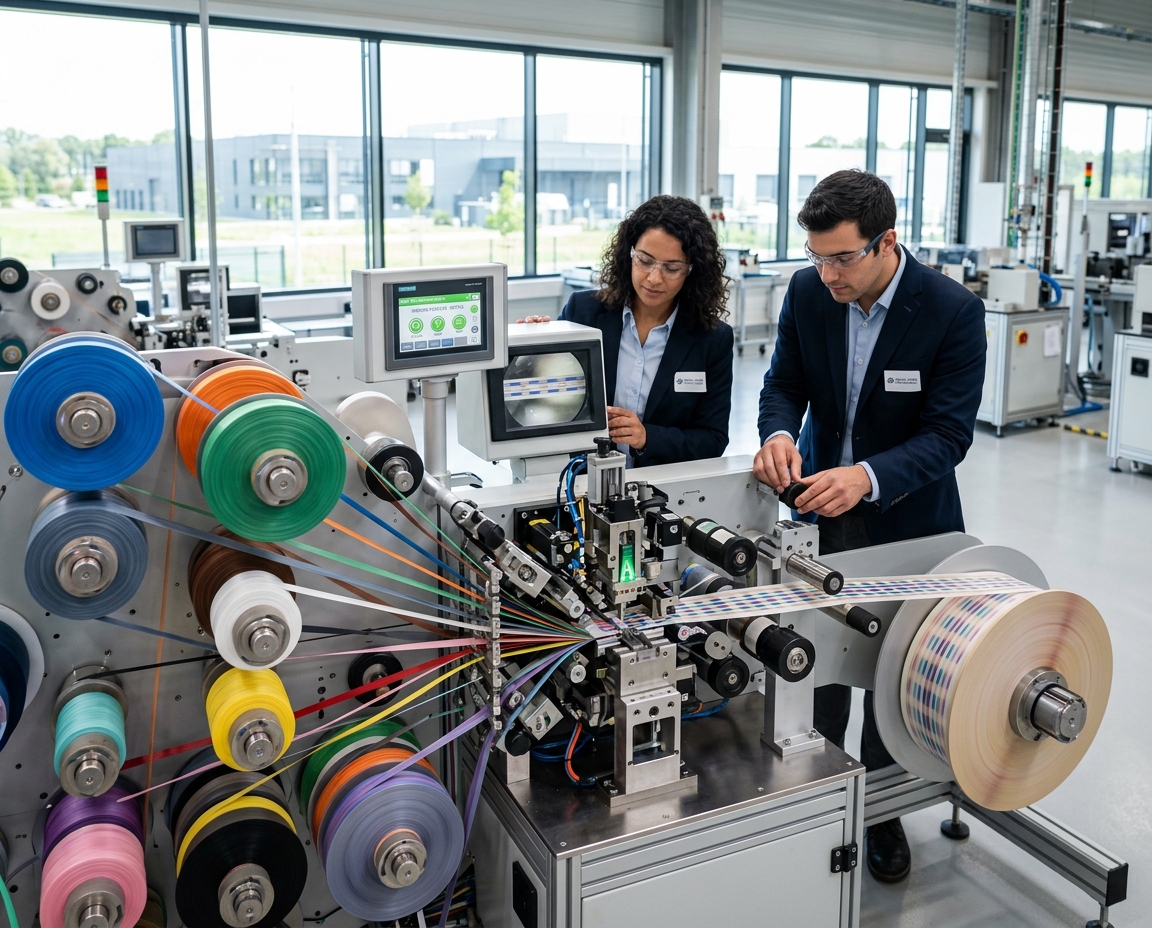

Intermittent Bonded Ribbon Production Line
Differences Between Rollable Ribbons And Conventional Flat Ribbons
In a conventional flat ribbon, the fibers remain in one fixed plane. Between bonds, a rollable fiber ribbon can fold without losing the fiber alignment needed for mass-fusion splicing. Bending and folding are supported by the small bonding points used in Prysmian’s FlexRibbon.
How Flexible Ribbons Enable Compact, High-Density Cables
Ribbon flexibility limits the space it occupies inside a high-density fiber cable. This enables cable designers to fit more fibers into a compact structure while preserving an organized fiber layout.
Process And Equipment For An Intermittent Bonded Ribbon Production Line
Throughout an intermittent bonded ribbon production process, optical fibers are laid side by side along the ribbon’s length. A first material coats groups of two or more fibers to create subunits. Neighboring subunits are joined at spaced points with a second material, leaving flexible sections between bonds.
Arrange Adjacent Optical Fibers Into Subunits
Fibers are positioned beside one another according to the planned ribbon layout. Each selected group becomes a subunit when the first coating material surrounds and holds its fibers together.
Deposit Subunit Coating And Intermittent Bonding Material
The subunits are created by fiber ribbon coating. Bonding material is deposited by a discrete coating applicator between neighboring subunits at spaced intervals, not continuously along their full length.
Create Diffusion Zones Through Wet-On-Wet Application
During wet-on-wet bonding, the subunit coating remains uncured when bonding material is applied. The materials diffuse across their shared interface to form a diffusion zone.
Cure The Subunit Coating And Bonds Together
Both the subunit coating and the intermittent bonds are cured in one curing step. Although optical fiber ribbon equipment is used for these operations, the complete equipment list, line speed, and production capacity remain unspecified.
| Production Stage | Material Or Operation | Purpose |
|---|---|---|
| Fiber arrangement | Arrange fibers next to one another | Establish the ribbon layout |
| Formation of subunits | Coat fiber groups with the first coating material | Keep groups of two or more fibers together as subunits |
| Intermittent bonding | Deposit the second material between neighboring subunits | Join subunits at spaced points |
| Wet-on-wet interface | Apply bonds before the subunit coating cures | Enable formation of a diffusion zone between the materials |
| Combined cure | Cure coating and bonds in one step | Cure the assembled ribbon structure |
Main Production Line Stages And Process Controls
Fiber ribbon production stages take place in a specific sequence. The sequence involves arranging fibers into subunits, applying a subunit coating, placing intermittent bonds between adjacent subunits, and curing the coating and bonds together. The ribbon design must guide both optical fiber coating application and placement of the bonds.
Gaps of 5 to 100 micrometers between subunits are described in example designs. A range of 10 to 1,000 millimeters is described for intermittent bond spacing in example designs. Some bond deposits take a diamond-like shape, narrowing at the ends and widening in the center. These are disclosed examples, not fixed settings for every production line.
The selected materials, bond layout, and curing method determine ribbon manufacturing process control. The source material does not specify line speeds, curing temperatures, or inspection intervals, so these values must not be inferred.
Materials, Bond Design, And Ribbon Flexibility
Ribbon behavior during cable making and splicing depends on the chosen materials and bond layout. Each fiber is covered by coatings that still allow the subunits to flex as designed.
Choose Compatible Coating And Bonding Materials
Because subunit coatings and ribbon bonding materials serve separate roles, they do not have to share the same formula. A gradual interface can be formed by resins that intermix or remain at least partly soluble. Lower coating viscosity may also promote intermixing.
This interface creates a diffusion zone in which properties change gradually. Differences in colour, stiffness, surface friction, tear strength, or stretch may occur within this zone. Disclosed thicknesses extend from 2 to 50 micrometers, with 5 to 15 micrometers representing a narrower range.
Manage Bond Placement, Spacing, And Geometry
Bond spacing determines where fiber subunits stay connected and where they can move freely. Intermittent bond geometry leaves unbonded spans between bond points. Some bond surfaces have a saddle shape made by intersecting convex and concave curves.
Balance Ribbon Flexibility With Fiber Organization
Unbonded spans allow the ribbon to shift from a flat layout into a rolled, curled, or folded shape. During cable installation, a flexible fiber ribbon can bend without disrupting the fiber organization needed for splicing.
Quality Checks For Consistent Ribbon Production
Instead of using assumed pass limits, dependable fiber ribbon quality checks focus on defined features. The patent identifies design factors such as bond spacing, subunit gaps, diffusion-zone thickness, and bond shape. However, it does not specify inspection methods or acceptance limits.
Check Bond Continuity And Subunit Alignment
Verify that intermittent bonds join adjacent subunits at the intended positions, with unbonded lengths between them. Review subunit alignment and gaps because movement can affect ribbon shape and bond geometry.
Evaluate Ribbon Flexibility And Rollability
To evaluate ribbon rollability, observe whether it bends and gathers while keeping fibers in their original order. Compare bond spacing and flexibility across the entire ribbon design. Treat these comparisons as design checks rather than general production tolerances.
Verify Fiber Identification And Ribbon Configuration
Use fiber color coding to confirm the position of each fiber. Blue, orange, green, brown, slate, white, red, black, yellow, violet, rose, and aqua make up a common 12-color sequence. For ribbons containing more than 12 fibers, this sequence may repeat.
Cable Applications, Integration, And Splicing Benefits
By folding within a cable, intermittently bonded ribbons allow more fibers in a compact design. According to Prysmian, FlexRibbon enables high-density ribbon cable designs with smaller diameters and more effective fiber duct utilization.
Support High-Density Cable Designs And Duct Utilization
For indoor, outdoor, and indoor/outdoor applications, Prysmian offers FusionLink and MassLink with FlexRibbon. Dry water blocking is used in FusionLink, which comes with either 250 μm or 200 μm ribbon. Under NESC Heavy loading conditions, EcoSpan aerial cable can support spans of up to 300 feet. FlexDrop is a small-diameter outdoor option that accommodates up to two 12-fiber ribbons.
Support Mass-Fusion Splicing And Quicker Deployment
Multiple ribbon fibers, often 12 at a time, are spliced in one operation through mass-fusion splicing. On compatible ribbon routes, this method can reduce splice time. For loose-tube cable connections, technicians separate the ribbon fibers and splice them one by one using a single-fiber splicer.
Consider Indoor, Outdoor, Access, And Broadband Uses
Applications for ribbon cable include point-to-point network links, indoor FTTH systems, MTP wiring-box links, and urban trunk routes. Selecting indoor and outdoor fiber cable for each route helps match cable construction with the needs of buildings, aerial runs, and underground installations.
Conclusion
An intermittent bonded ribbon line guide brings together fiber layout, bond placement, curing, and inspection. The result is a flexible optical fiber ribbon that remains orderly during handling yet can roll or fold into compact cable designs.
In this process, bonds are placed before the subunit coating cures. Before they cure together, the materials form a diffusion zone. Reliable fiber cable manufacturing is supported by careful control at every stage.
Flexible ribbons also facilitate mass-fusion ribbon splicing, allowing crews to join multiple fibers at once. FlexRibbon is described by Prysmian as suitable for various cable designs, including compact configurations with up to 6,912 fibers.
Manufacturers and network planners need to manage fiber alignment, bond strength, and rollability. This balance may make cable packaging simpler while ensuring ribbons remain prepared for efficient installation and splicing.
